$70.00

Darter Design's First Frame on the Market!

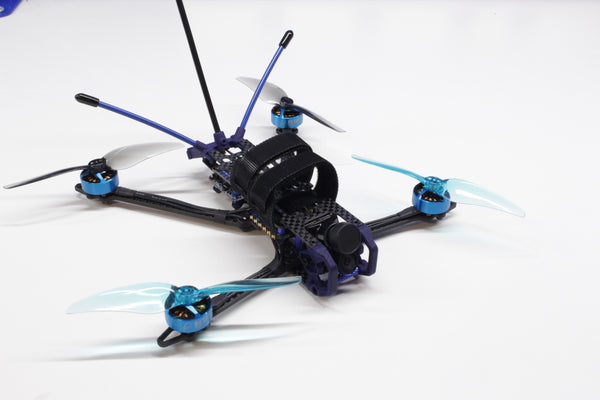

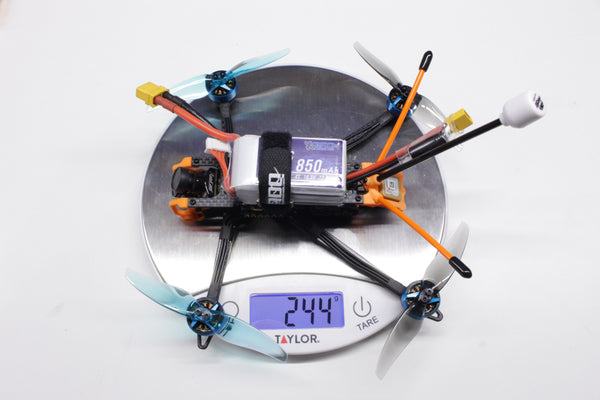

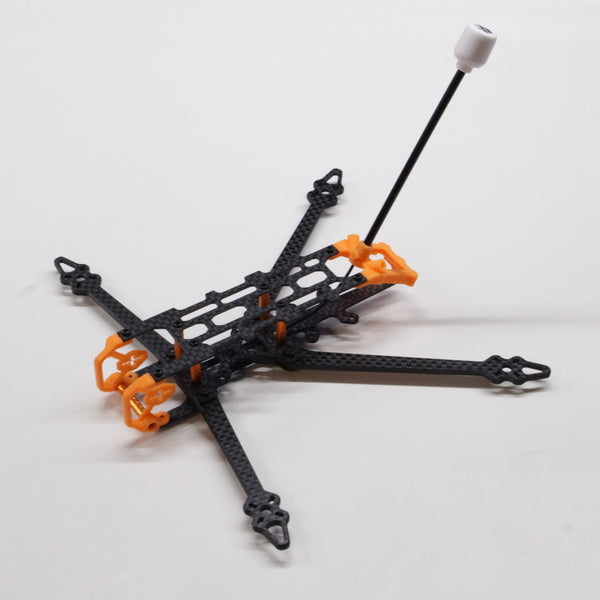

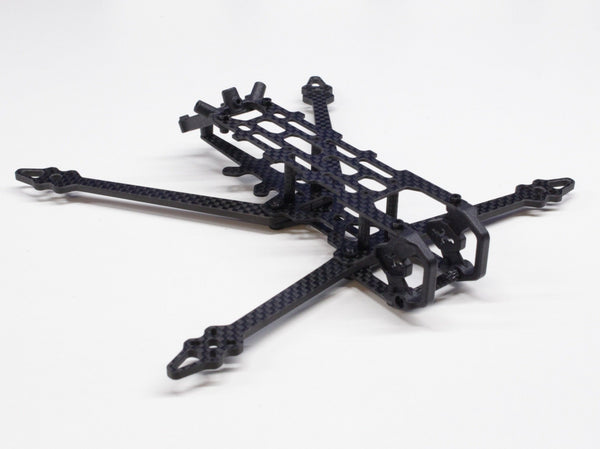

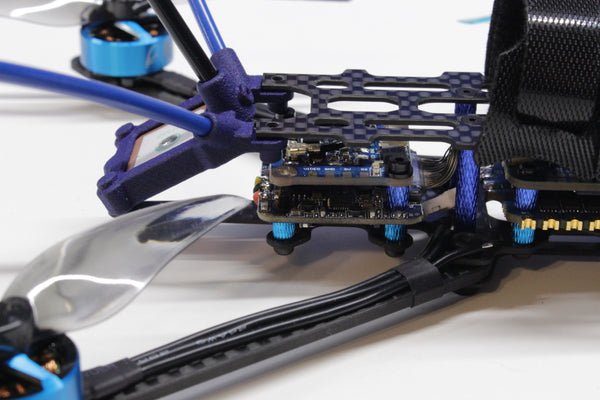

The Darner is a 4" Lightweight Long Range FPV Frame that can be built lean and weigh UNDER 250g AUW!

MADE IN AMERICA & CANADA

All Materials and Parts have been sourced and manufactured in America & Canada!

FEATURES:

CNC Milled 3K Carbon Fiber with Chamfered Edges

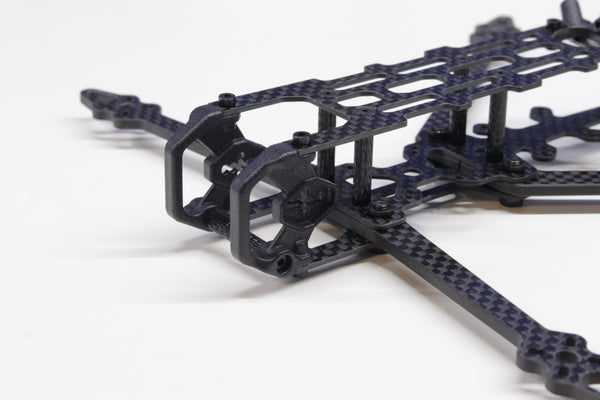

Strong & Rigid Reinforced Nylon Camera Cage & Antenna/GPS Mount

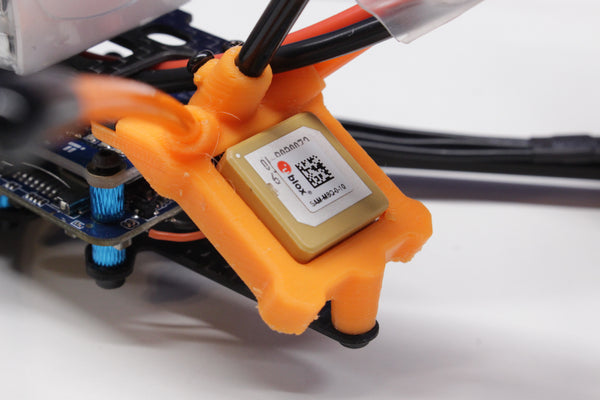

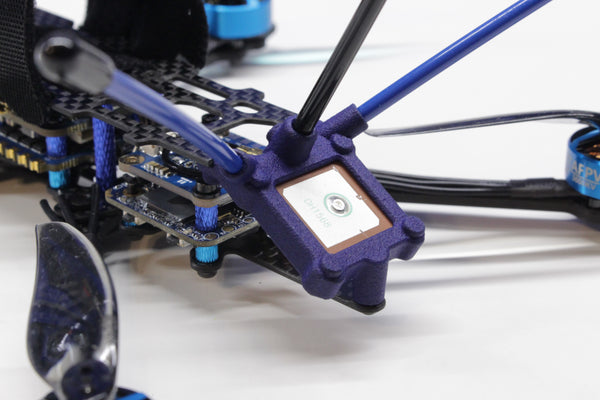

Fits GPS & GPS/MAG boards

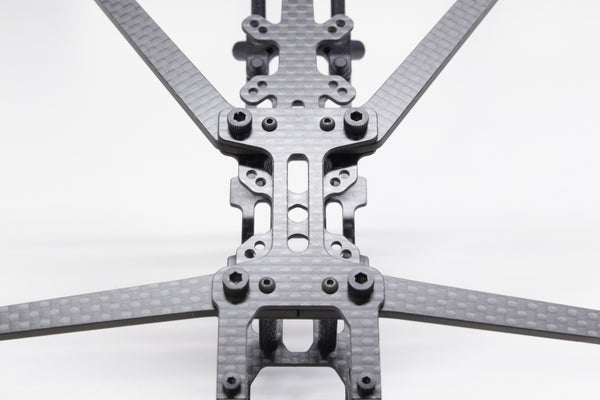

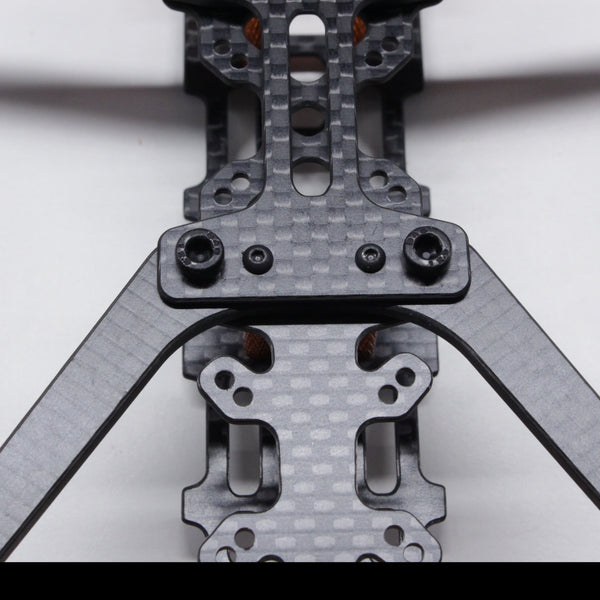

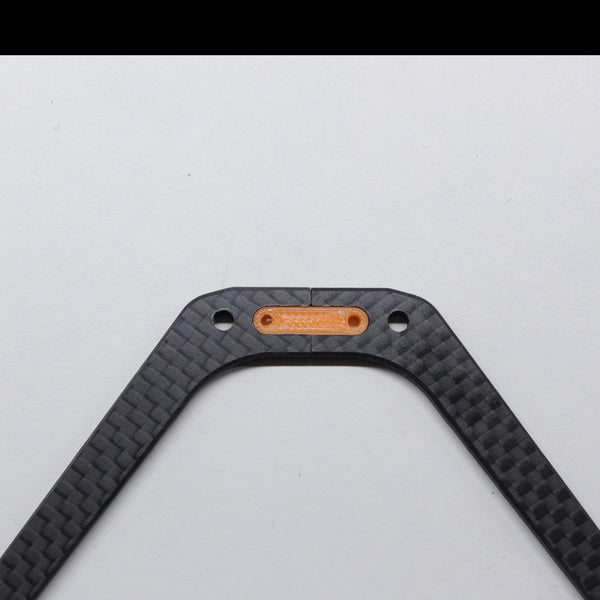

Single Screw Isolated Arms

Easy Frustration Free Arm Changes

Plates don't separate during arm change

Tight Secure Wiggle Free Lock

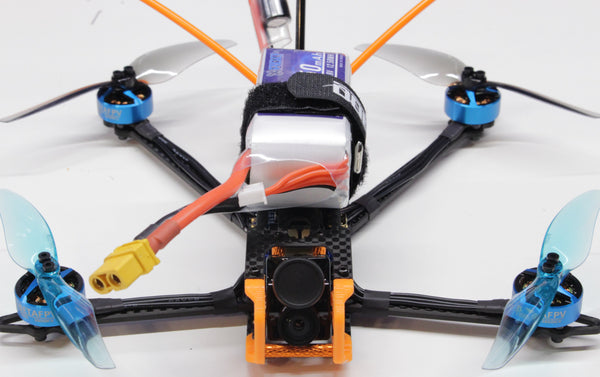

Top Battery Mounting

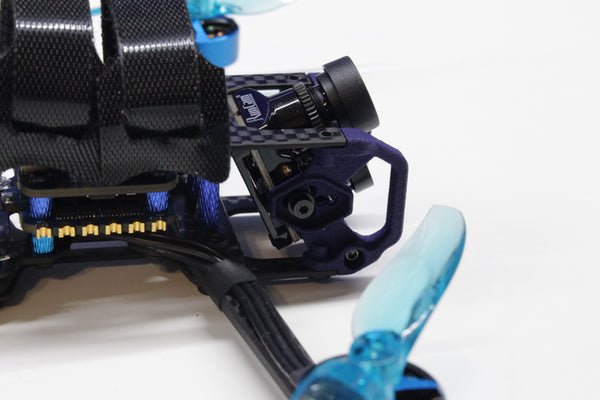

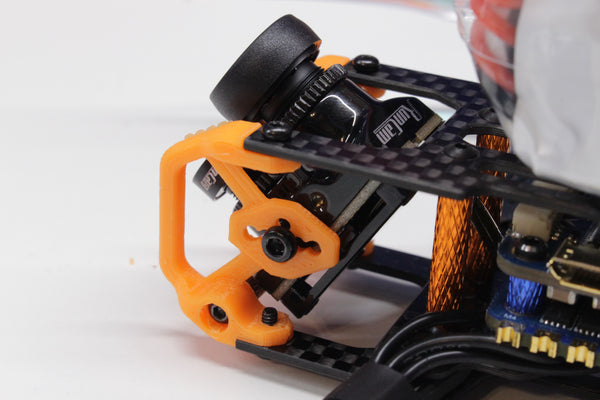

0° - 90° Adjustable Camera Angle

Fits Analog and HD Digital Cameras (Does not fit DJI HD Units)

Caddx Vista, Runcam Hybrid, Caddx Tarsier

Most Micro & Nano Cameras

Side Protected Camera Lens

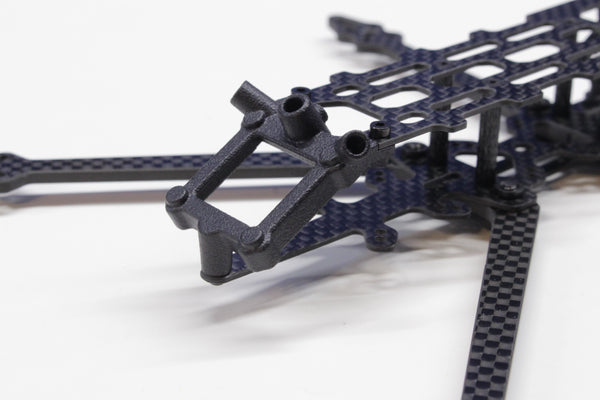

Nylon Mounted Rx and VTx Antenna

Holds Antenna Tubes & VTX tubes up to 3.2mm Ø

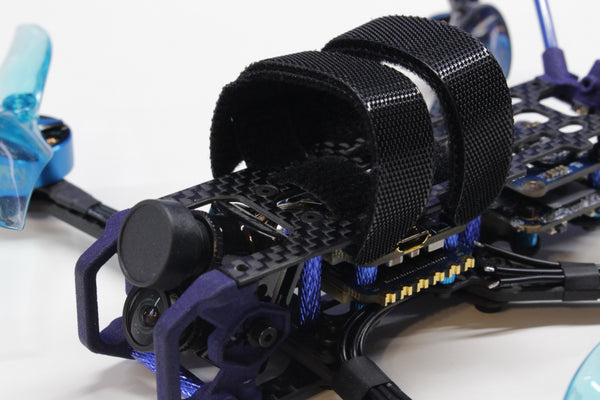

Battery Strap Slots for 15mm Straps

SPECS:

Standard Color is BLACK NYLON PARTS & Standoffs

Other colors in PETG are available by request

Wheelbase (Motor to Motor): 185mm

Wheelbase Shape: Isosceles Trapezoid

Max Prop Size: 4.0"

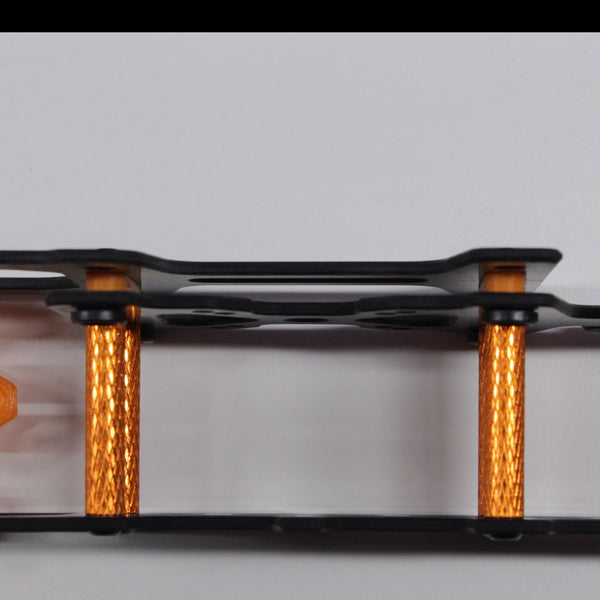

Distance Between Upper and Lower Plates: 20mm

Motors Supported: 11XX to 20XX

Motors Mounting Pattern: 4X M2 on 9mm-12mm Ø

Cameras Supported: Up to 19mm Wide

Flight Controllers & Boards Supported: 20mm X 20mm & 16mm X 16mm

M2 Mounting Holes

Two Stack locations: Middle & Rear

Weight: 39g (Frame & Hardware)

Top Plate: 1.5mm Carbon Fiber

Mid Plate: 1.5mm Carbon Fiber

Bottom Plate: 1.5mm Carbon Fiber

Arms: 3.0mm Carbon Fiber

Kit Contents:

1X Darner 155 LR Carbon Frame Kit

- 1X Top Plate

- 1X Mid Plate

- 1X Bottom Plate

- 4X Arms (2ea Front & 2ea Rear)

- 2X Camera Cage Sides (Left & Right)

-1X RX/VTX/GPS Mount

5X 20mm Standoff

M2 Button Head Hardware
