$120.00

Arguably the World's First Freestyle Hexacopter Frame!

All Materials and Parts have been sourced and manufactured in America & Canada!

BUILD INSTRUCTIONS:

 FRAME REVIEW:

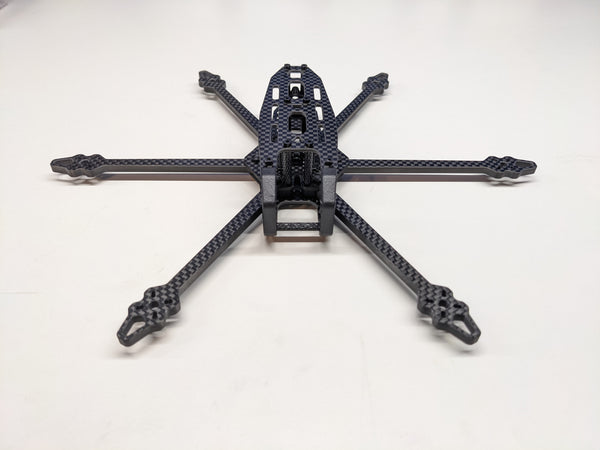

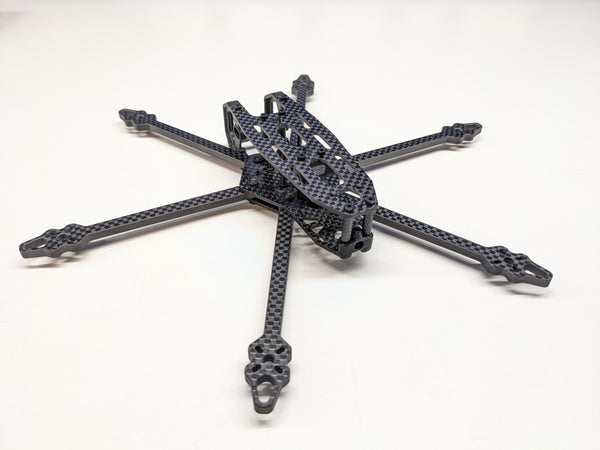

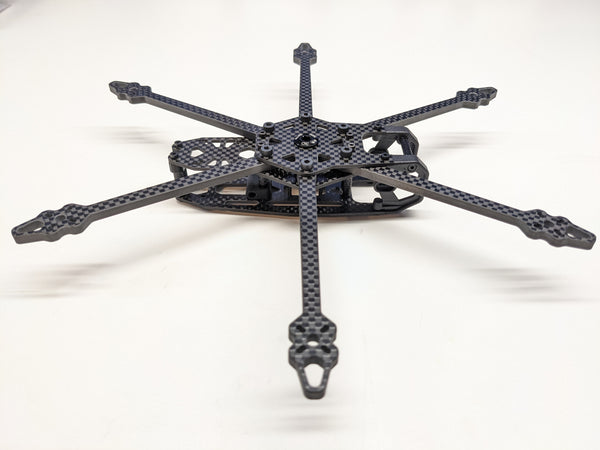

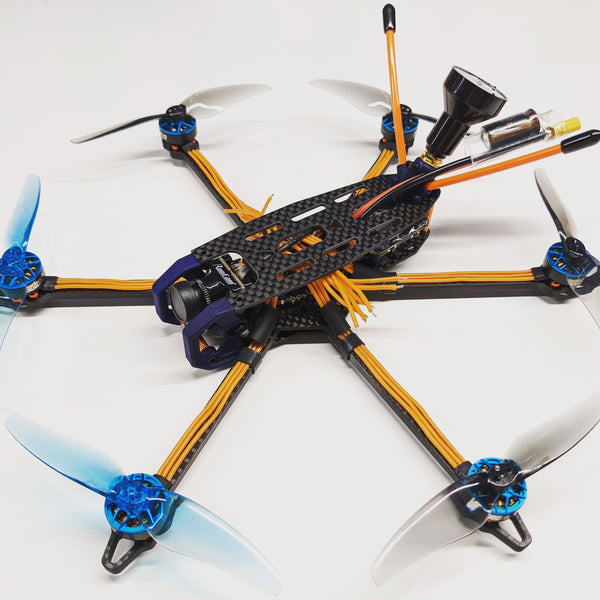

The Hornet 220 is a 4" Mid-Weight Freestyle FPV Hexacopter Frame that can be built lean or mean.

Why a Hex? Hexacopters offer a more locked in and "on rails" feel over Quadcopters. This is because when yawing, the hex has the CoG centered between 3 motors, rather than a CoG balanced inline between two motors like a quad. This helps get rid of some nasty coupling that can happen on poorly balanced quads.

TLDR: You get a purer and more direct/uncoupled control with a Hex. This makes a hex a strong contender for those looking for BUTTERY smooth yaw spins and other tricks that need slow and smooth control.

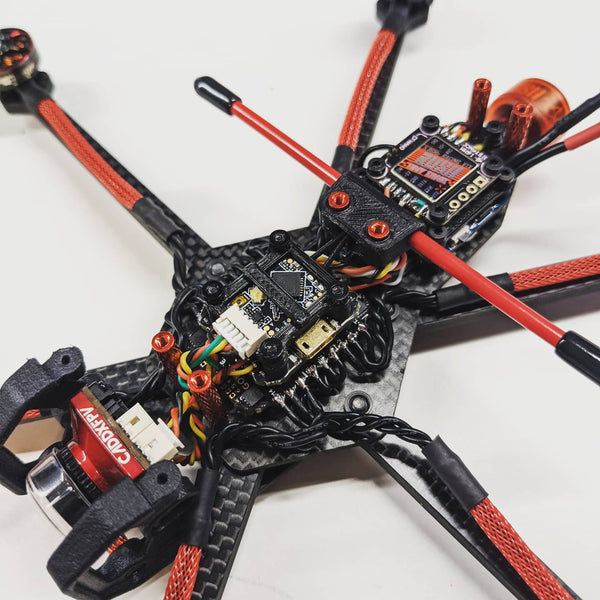

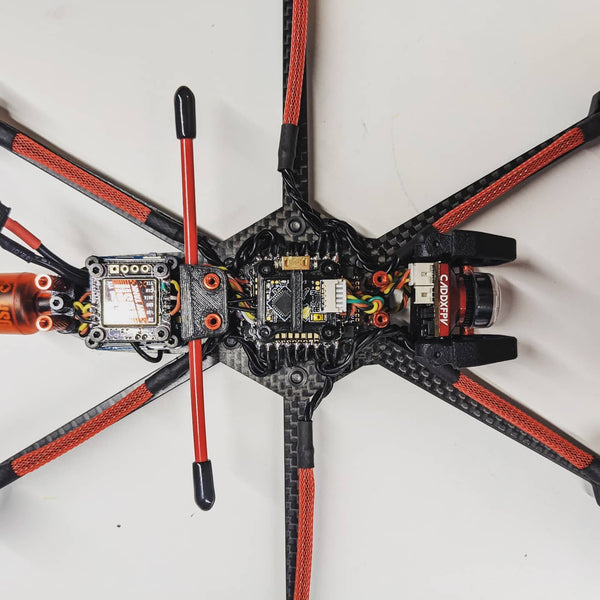

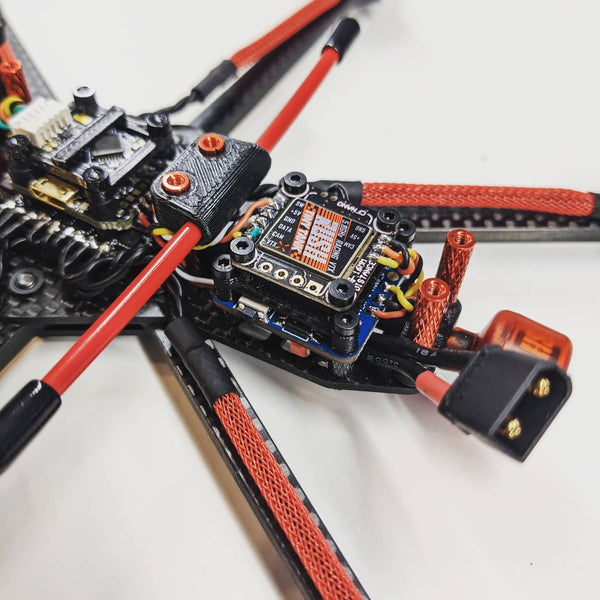

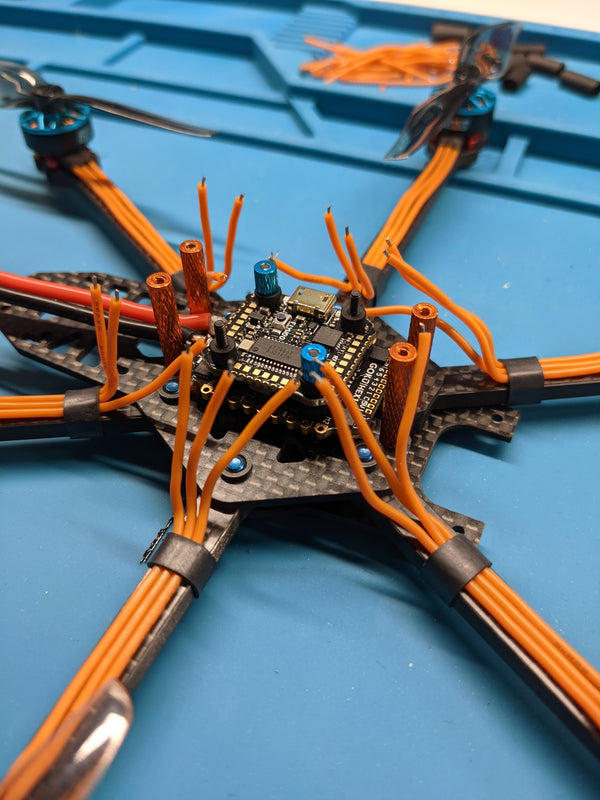

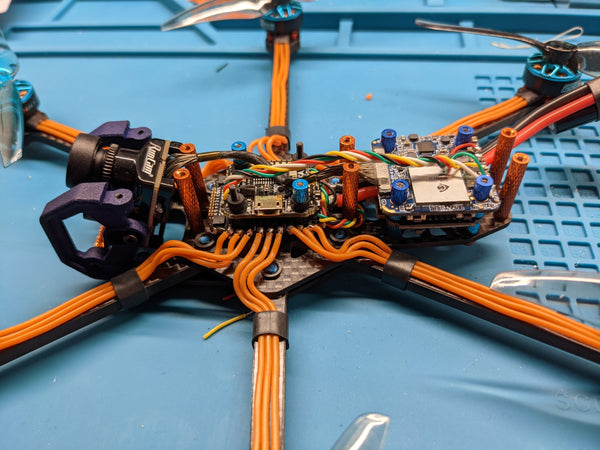

This frame is designed around the use of the Flywoo F411HEX or F745HEX Flight Stacks. You can however use whatever stack and ESCs you wish. With both 20x20 and 16x16 mounts, the Hornet 220 will fit most Analog and Digital Gear.

MADE IN AMERICA & CANADA

All Materials and Parts have been sourced and manufactured in America & Canada!

FEATURES:

  • CNC Milled 3K Carbon Fiber with Chamfered Edges
  • Smooth Feel and Slick Looks
  • NO SPLINTERS OR SANDING!!!
  • Strong & Rigid Reinforced Nylon Rx and VTx Antenna Mounts
  • Holds Rx Antenna Tubes up to 3.2mm Ø
  • Holds VTX with tubes up to 4.2mm Ø
  • Single Screw Isolated Arms
  • Universal Arm for each corner
  • Easy Frustration Free Arm Changes with M3 Hardware

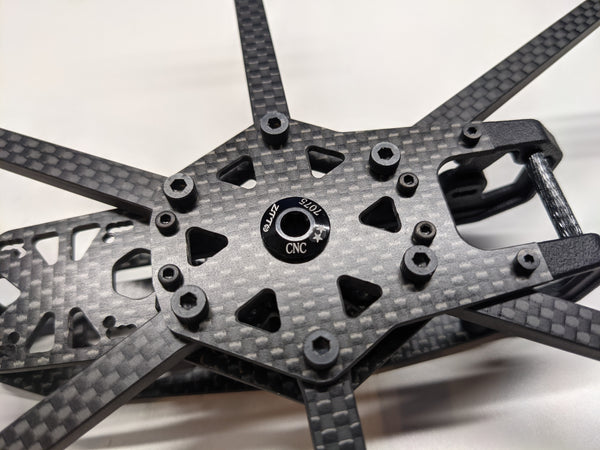

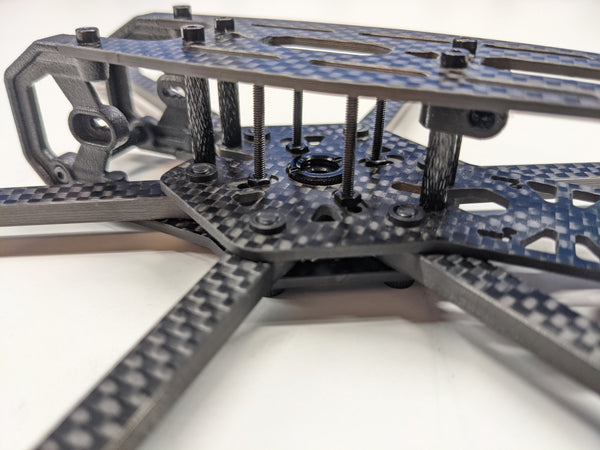

  • Single Center Chainring Bolt (Inspired by Dave_C)
  • Bottom & Mid Plates don't separate during arm change
  • Tight, Secure, and Wiggle Free Arm Lock

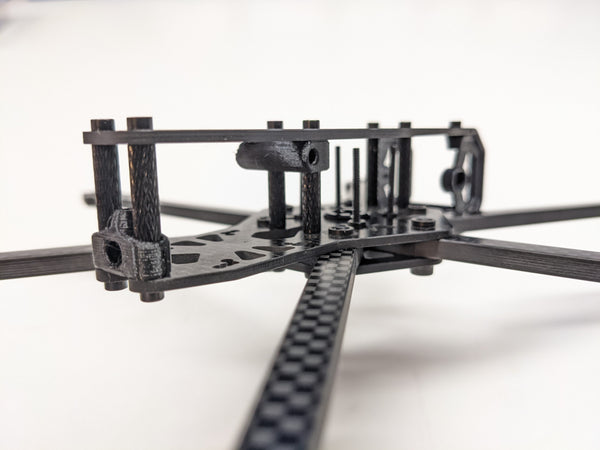

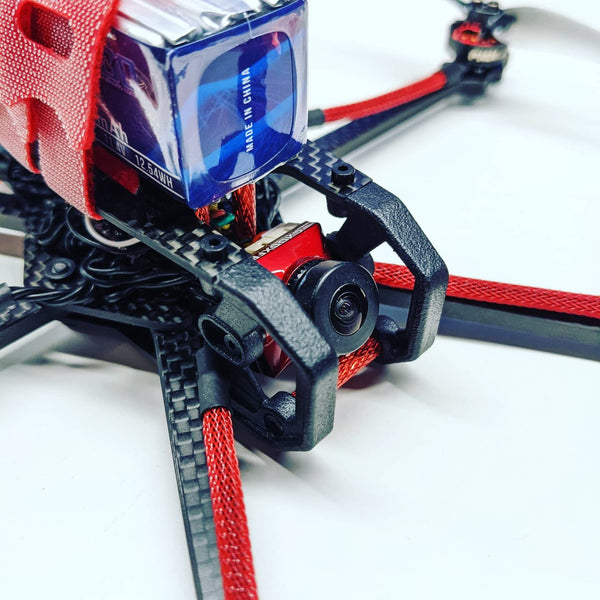

  • Strong & Rigid Reinforced Nylon Camera Cage
  • 0° - 90° Adjustable Camera Angle
  • Fits Most Micro & Nano Cameras (20mm)
  • Room for Analog and HD Digital Cameras (Does not fit DJI HD Units)
  • Caddx Vista, Runcam Hybrid, Caddx Tarsier, DJI HD Camera
  • Side Protected Camera Lens

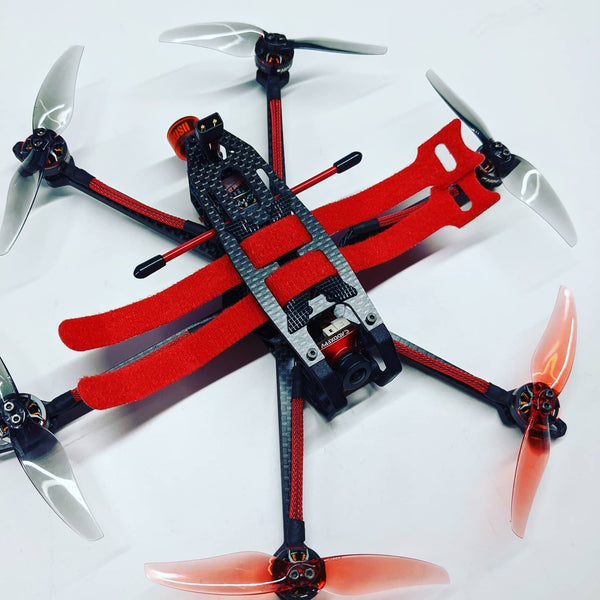

  • Top Battery Mounting
  • Three Battery Strap Slots for 15mm Hook&Loop Straps
  • Fits Lipo/Lion Packs up to ~80mm Long (Depends on Camera Location & Tilt)

SPECS:

  • Standard Color is BLACK NYLON PARTS & BLACK STANDOFFS
  • Other colors are available by request!
  • Black Reinforced Nylon Parts & Standoffs
  • Wheelbase (Motor to Motor): 220mm
  • Wheelbase Shape: True Plus Hex
  • Max Prop Size: 4.0"
  • Distance Between Upper and Mid Plates: 20mm
  • Motors Supported: 11XX to 20XX
  • Motors Mounting Pattern: 4X M2 on 9mm or 12mm Ø
  • Cameras Supported: Up to 20mm Wide
  • Flight Controllers & Boards Supported: 20mm X 20mm & 16mm X 16mm

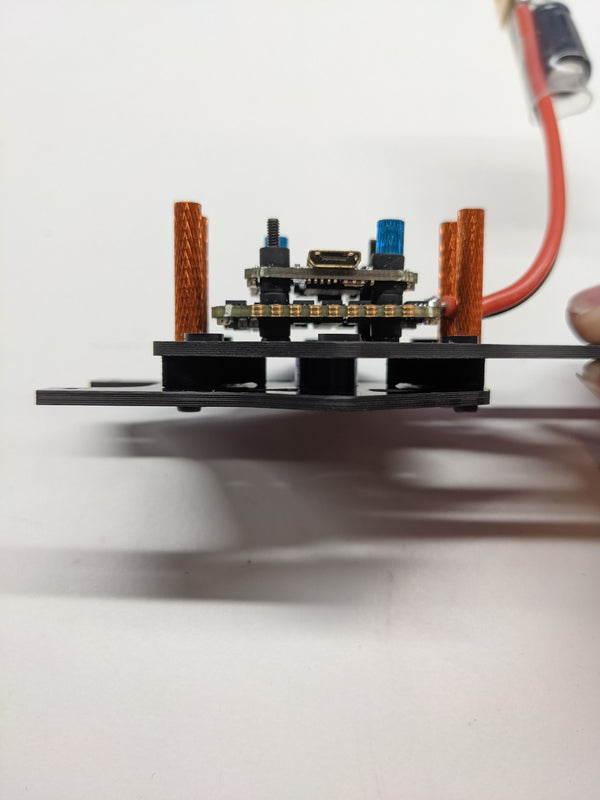

  • Two Stack locations: Middle & Rear (M2 Mounting Holes)
  • Weight: 80g (Frame & Hardware)
  • Top Plate: 2.0mm Carbon Fiber
  • Mid Plate: 2.0mm Carbon Fiber
  • Bottom Plate: 2.0mm Carbon Fiber
  • Arms: 4.5mm Carbon Fiber

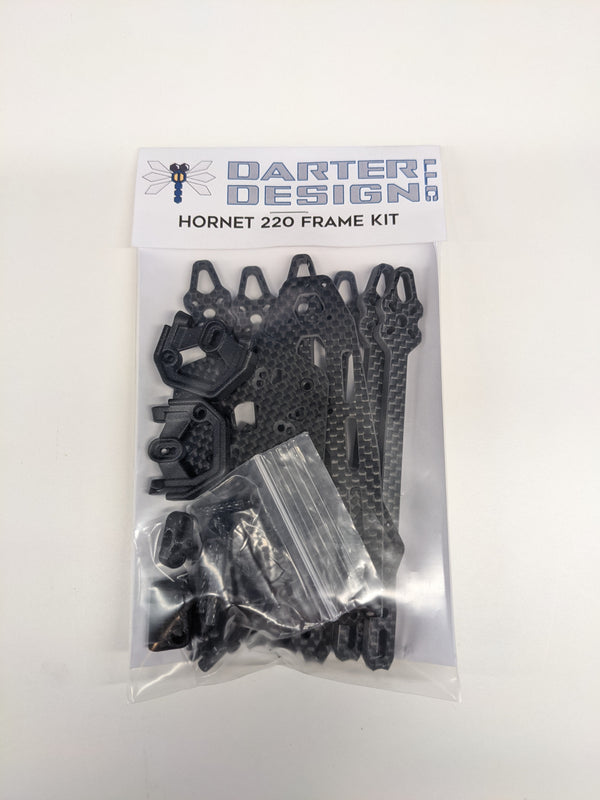

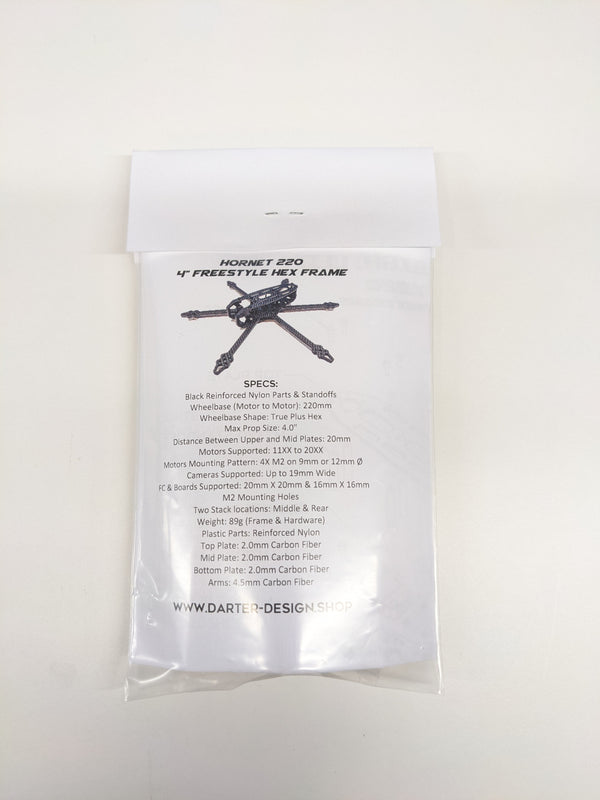

Kit Contents:

  • 1x Instruction Manual
  • 1x Top Plate
  • 1x Mid Plate
  • 1x Bottom Plate
  • 6x Arm
  • 1x Camera Cage
  • 2x Arm Spacer
  • 1x SMA VTx Antenna Mount
  • 1x Tube VTx Antenna Mount
  • 1x Rx Antenna Mount
  • 1x Immortal-T Antenna Mount
  • 1x Chainring Bolt
  • 7x M2x20 Standoff
  • 10x M2x5 SHCS
  • 8x M2x5 FHCS
  • 4x M2x14 SHCS
  • 4x M2x20 FHCS
  • 4x M2 Nut
  • 6x M3x10 SHCS
